ESC, Electronic Speed Control

Electronic Speed Control (ESC), for drone motors and UAVs, developed and manufactured in Sweden.

  • Longer flight time – 99% efficiency or more
  • Optimized performance – Tuned for each motor model
  • Lower disturbances – FOC (Field Oriented Control)

The ESCs is compatible with motors from any brand. Simplex Motion can also offer a drone motor kit, with drone motors developed and manufactured in Sweden.

Drone, ESC, FOC

Simplex Motion has taken the experience and deep knowledge of developing advanced motor controllers for servomotors into the ESC (Electronic Speed Control) for Brushless DC motors used in drones and UAVs. The TD-series of Electronic Speed Control for the UAS has FOC (Field Oriented Control) method to increase efficiency and the possibility to control the motors at lower speeds, down to 5-10% of rated rpm.

The high efficiency design provide a longer flight time. Compare to similar products on the market the efficiency is 7-10% higher.

The TE-series features an advanced and improved trapezoidal control with high efficiency.

All Electronic Speed Controls are developed and manufactured in Sweden. The rating and figures in the technical data specifications are “real amps”!

The ESCs works with motors from any brand, consult us for more information. We can also offer a Swedsih drone motor kit with Sweden made drone motors.

Are you in need of smart electronics for drones and UAVs, developed and manufactured within Europe, contact us at sales(at)simplexmotion.com – Made in Sweden!

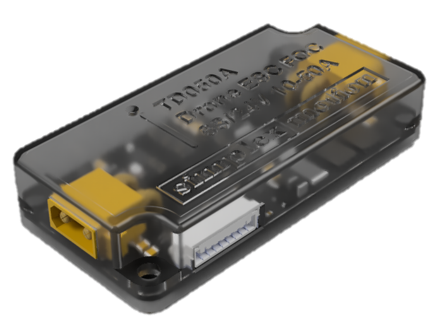

TD050 – ESC FOC 6S/24V 10-50A

ESC, Electronic Speed Control with FOC for brushless DC motors in drones and UAVs. Optimize your drone motor with an ESC FOC from Sweden.

The TD050 gives up to 800W continously with constant airflow and cooling.

Specifications

  • Power supply: 3-6S / 12-24V
  • Current cont.: 10-40A, dependent on mounting/cooling
  • Current peak: 50A
  • Efficiency: 99,5% or higher
  • Motor connector: MR30
  • Power connector: XT30
  • Com. connector: GH
  • Interface: PWM/DSHOT
  • Dimension: 60x30x15mm
  • Weight: 24g
  • Recommended drone size (quad): 1-6kg

Documentation

Electronic Speed Controllers-ESC

SimplexMotionTechnicalDataTD

Electric Speed Control FOC 20-100A

TD100 – ESC FOC 12S/48V 20-100A

ESC, Electronic Speed Control with FOC for brushless DC motors in drones and UAVs. Optimize your drone motor with an ESC FOC from Sweden.

The TD100 gives up to 2000W continously with constant airflow and cooling.

Specifications

  • Power supply: 6-12S / 24-48V
  • Current cont.: 20-60A, dependent on mounting/cooling
  • Current peak: 100A
  • Motor connector: MR60
  • Power connector: XT60
  • Com. connector: GH
  • Communication: CAN
  • Interface: PWM/DSHOT/CAN
  • Dimension: 60x30x15 mm
  • Weight: 45g
  • Recommended drone size (quad): 5-20kg

Documentation

Electronic Speed Controllers-ESC

SimplexMotionTechnicalDataTD

ESCs – soon to be released

Development is continously ongoing. If you have any certain requirements, we are open for a discussion. Please contact us at sales(at)simplexmotion.com.

TE030 – ESC 4in1 6S/24V 5-30A

ESC, Electronic Speed Control for brushless DC motors in drones and UAVs. The ESC TE030 is a 4in1 ESC with advanced trapezoidal control for optimized performance.

The TE030 gives up to 400W/motor continously with constant airflow and cooling.

Specifications

  • Power supply: 3-6S / 12-24V
  • Current cont.: 5-15A, dependent on mounting/cooling
  • Current peak: 30A
  • Efficiency: 98% or higher
  • Com. connector: JST GH
  • Interface: PWM/DSHOT
  • Dimension: 45x45x7mm
  • Mounting: 30,5×30,5mm (4mm hole diameter)
  • Weight: 15g
  • Recommended drone size (quad): 0,25-1,5kg

Documentation

Electronic Speed Controllers-ESC

Electric Speed Control FOC 20-100A

TD200 – ESC FOC 12-20S/48-82V 30-200A

ESC, Electronic Speed Control with FOC for brushless DC motors in drones and UAVs. The TD200 ESC FOC is the most powerful in the assortment.

The TD200 gives up to 4000W continously with constant airflow and cooling.

Specifications

  • Power supply: 12-20S / 48-82V
  • Current cont.: 30-80A, dependent on mounting/cooling
  • Current peak: 200A
  • Motor connector: Cables
  • Power connector: XT90
  • Com. connector: JST GH
  • Interface: PWM/DSHOT/CAN
  • Dimension: 120x60x30 mm
  • Weight: 65g
  • Recommended drone size (quad): 10-40kg

Documentation

Electronic Speed Controllers-ESC
